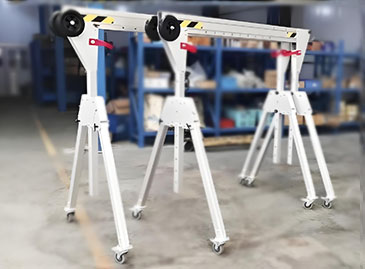

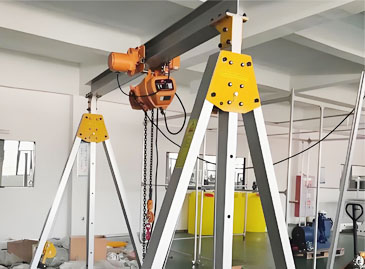

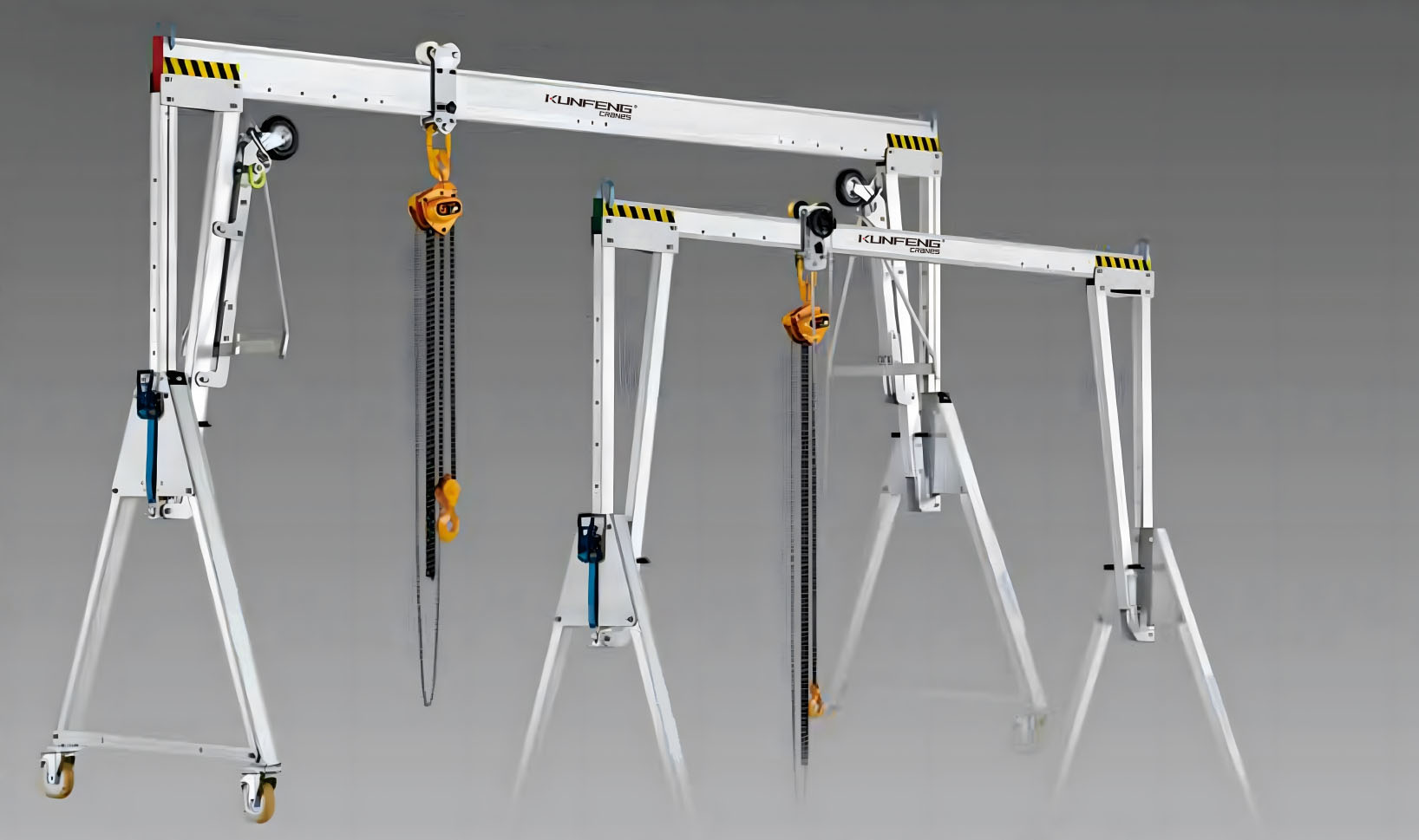

Adjustable Height Aluminum Track Gantry Crane

The height adjustable aluminum track gantry crane is a lifting equipment with adjustable height function. It is made of aluminum alloy material and has the characteristics of lightness, strength and corrosion resistance. It is suitable for workplaces that require frequent adjustment of lifting height, such as production lines, warehouses, logistics centers, etc.

Introduction to composition structure:

  ● The gantry frame is made of aluminum, which is lightweight, high-strength and corrosion-resistant. It is shaped like a "door" with tall columns on both sides, which are connected with horizontal crossbars and diagonal bars to form a solid structure. The height of the gantry frame can be adjusted through the hydraulic system to adapt to different working situations.

  ● Electric motors are key components of control equipment. It provides the power of the spreader and controls the speed and direction of the gantry crane. Usually, the motor of the gantry crane is driven by alternating current or direct current. When the motor is started, it transmits power to the chain and spreader through the transmission mechanism.

  ● The chain is an important part of connecting the motor and the spreader. It is composed of numerous chain links and can withstand high-strength tension and pressure. The chains are fixed on both sides of the gantry frame, forming a linear motion path perpendicular to the ground. When the motor rotates, the chain is pulled to move and drives the spreader up or down together.

  ● The spreader is the loading equipment of the gantry crane. It usually consists of components such as metal hooks, suspension ropes and pulleys. When the spreader is attached to the chain, it can rise to a predetermined height along a straight path and suspend the weight on the hook. By controlling the speed of the chain and the position of the spreader, the gantry crane can position the load exactly where it is needed.

Key features and functions:

  ● With the adjustable height design, the height of the hook can be adjusted at will to adapt to materials of different sizes and heights.

  ● Aluminum alloy materials are lightweight, making the overall weight of the aluminum rail gantry crane lighter and easier to transport and install. At the same time, aluminum alloy materials also have high strength and corrosion resistance, ensuring the robustness and durability of the equipment.

  ● It can be flexibly laid out and adjusted according to the needs of the workplace, and can realize multi-station operations and multi-angle operations.

  ● Equipped with a variety of safety protection devices, such as limit switches, heavy load protection, etc., to ensure safety and stability during operation.

  ● It has good corrosion resistance and wear resistance and is not easily affected by the external environment, reducing equipment maintenance and maintenance costs.
