Installation of Aluminum Folding Mobile Gantry Crane

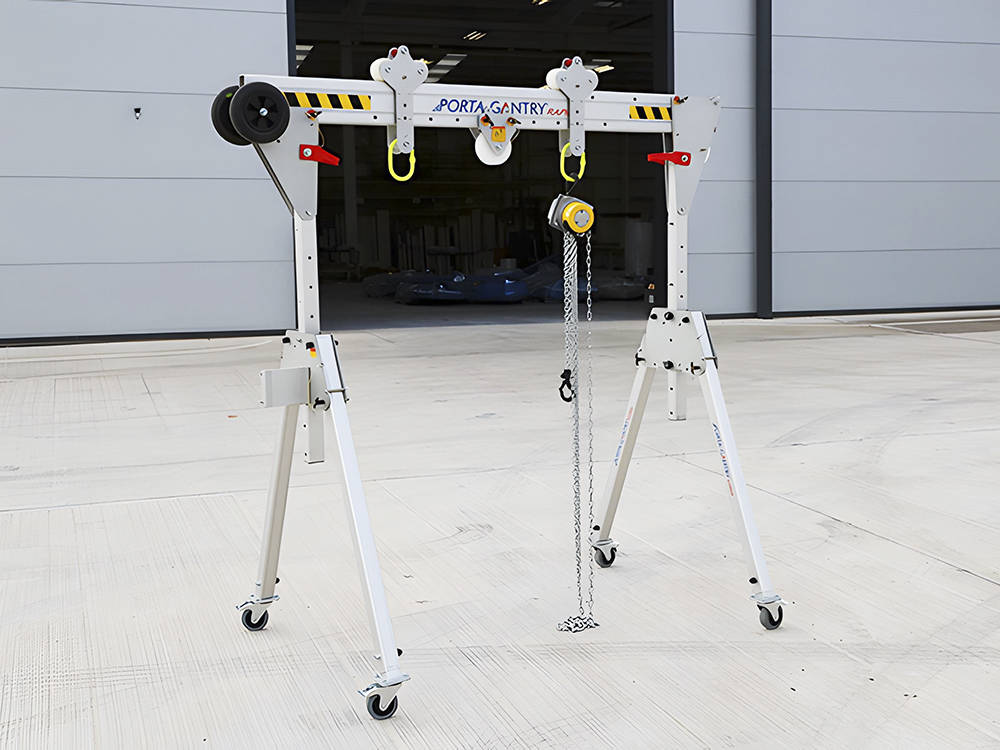

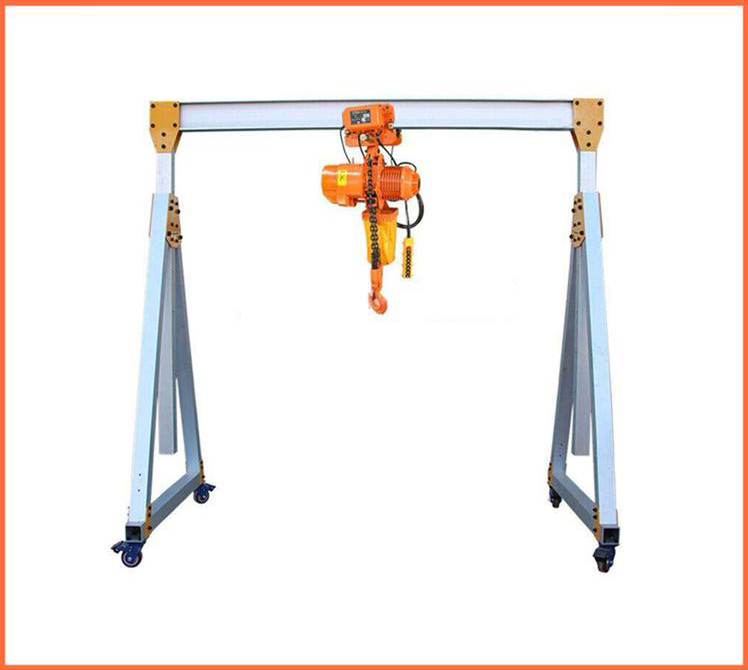

Aluminum folding mobile gantry crane is a light, flexible and efficient material handling equipment designed for the movement and installation of small and medium-sized loads. It is made of high-strength aluminum alloy material, which is corrosion-resistant, light and beautiful. At the same time, the folding structure is easy to disassemble and store quickly, which greatly saves space. Equipped with universal wheels or adjustable casters, it ensures that the equipment can be easily moved and positioned in the workplace to adapt to different terrain requirements. The adjustable height design and versatility of aluminum gantry cranes make it widely used in workshop maintenance, equipment commissioning and storage and handling. It is a modern lifting equipment that combines portability and practicality.

The key to achieving foldable function

When designing aluminum folding mobile gantry crane, the key is to use hinges and locking mechanisms to achieve the folding and unfolding of various structural components. First, the support legs can be connected to the main frame through hinges. When not in use, the support legs can be folded inwards and parallel to the main beam to save space. Secondly, the main beam part can be designed as a retractable or segmented structure, which can be unfolded when needed through slide rails or locking devices, and can be retracted or split after use. All folding parts need to have a stable locking device to ensure that the structure is stable and safe when in use.

Installation process of aluminum folding mobile gantry crane

  ● Check the aluminum frame, support legs, main beam, wheel set and other accessories to ensure that all parts are complete and meet the design standards.

  ● Hinge the folding support legs to the main beam; install the support legs to the connection position of the main beam according to the design drawings or instructions.

  ● Slide the main beam into the track and adjust its length as needed; use the locking device to fix the main beam position to ensure that the main beam does not move during operation.

  ● Install universal wheels or adjustable casters to the bottom of the support legs; ensure that the wheel set is firmly installed and can rotate or move smoothly.

  ● Test the load-bearing capacity and mobility of the equipment to ensure that the main beam, support legs, wheel set and other components run smoothly under load.

  ● Check whether the entire equipment is stable and reliable, and whether all folding and unfolding mechanisms are normal.

The aluminum gantry cranes we produce fully support customized services. According to the specific needs of customers, we can adjust its structure, size, load-bearing capacity and functional configuration to adapt to different working environments and operating requirements. Whether it is adjustable height, folding function or a specific wheel design, we are able to provide flexible solutions according to customer requirements. Contact us now for free design and preferential prices!
