Aluminum Adjustable Gantry Cranes Guideline

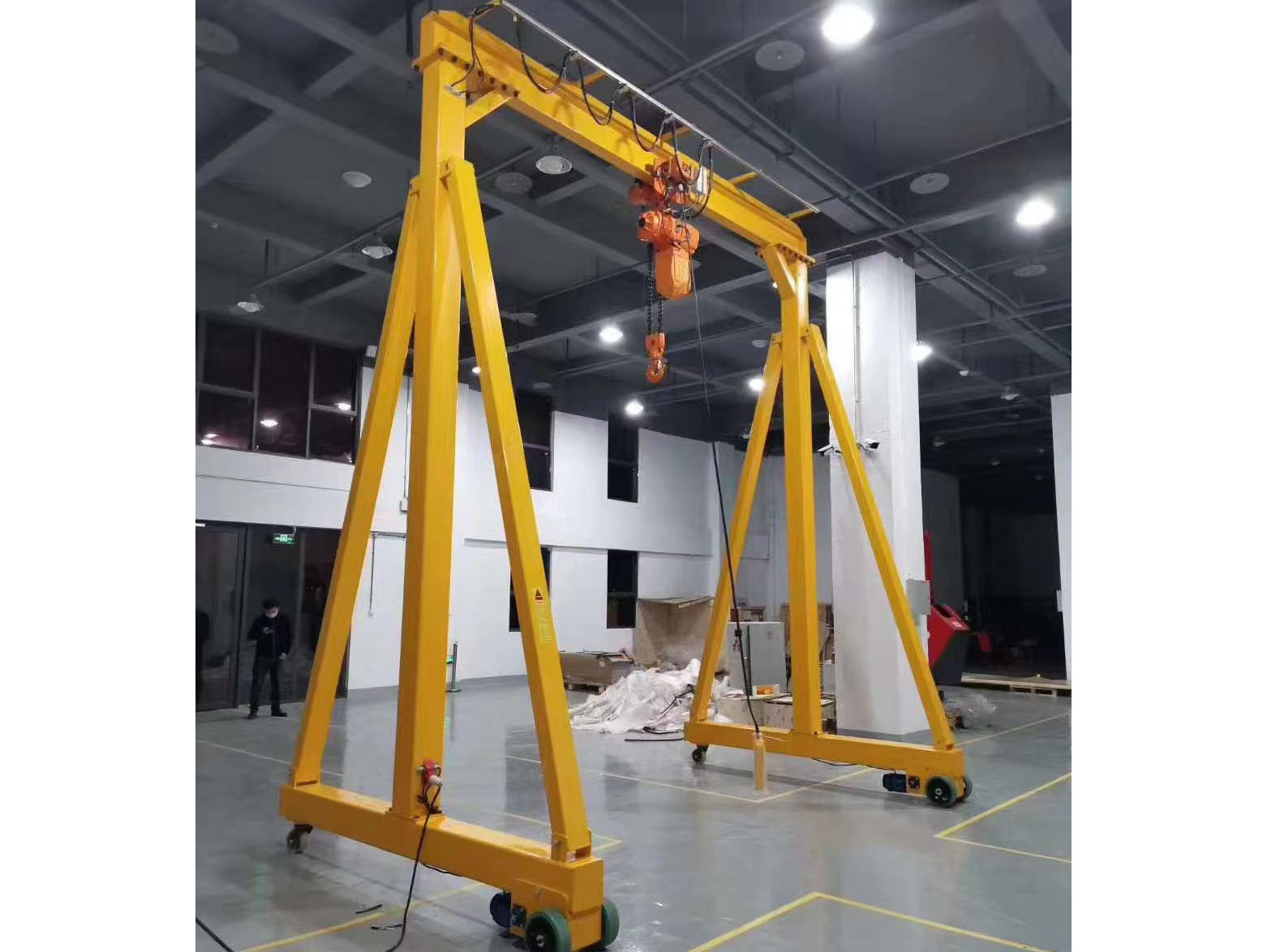

The aluminum adjustable gantry crane is a simple gantry crane that operates on solid, flat ground and can be easily moved arbitrarily. Ideal for a variety of repair and assembly operations inside and outside the workshop.

Features

• Lifting weight up to 5000KG

• Easily disassembled for transport

• Swivel PU wheels with small rolling resistance, easy to move

• Optional winch or turbine lift

Advantages

1. Optimize Design

Heavy duty design with safety factor of more than 15%, strong structure; It is easy to install and disassemble, convenient and flexible, and has strong adaptability to the site, which can greatly improve the efficiency of cargo handling.

2. Quality Materials

The high quality aluminum alloy 6005-T5 is used to ensure the structural strength and rigidity meet the load-bearing requirements, and ensure the stability and safety of the whole machine.

3. Exquisite Craft

From materials to processing technology, from manufacturing to assembly and commissioning, the entire production process of mobile gantry ensures the strong carrying capacity and long service life of mobile gantry cranes.

4. Quality Details

Aluminum adjustable gantry crane is equipped with universal polyurethane wheels with brake, 360 degree azimuth rotation is convenient for moving operation; The components are connected with 10.9 high strength bolts for easy disassembly and transportation.

Spec

Operating Instruction

1. Training:

Operators should receive appropriate safe operation training to understand the working principle of the crane, safe operation procedures and emergency response measures.

2. Pre-start-up Check：

 • Check all components, including wire ropes, pulleys, electrical systems, etc.

 • Make sure there are no people or obstacles in the path of movement.

 • Test all control functions.

 3. Operational Process：

 • Lift and lower the load slowly to avoid sudden start or stop.

 • When moving the load, maintain a steady speed and avoid rocking or wobbling.

 • Strict adherence to maximum load limits.

If you would like to know more about gantry cranes, free to contact us for relevant information data.
