Aluminum Floor Mounted Electric Jib Crane

Aluminum floor mounted electric jib crane is a lifting equipment based on aluminum alloy materials. It uses electric drive to realize all-round hoisting operations through the rotation and lifting of the jib. Because of its simple structure, small footprint, and easy operation and maintenance, it has been widely used in factory production lines, construction sites, logistics and transportation and other fields.

Composition structure

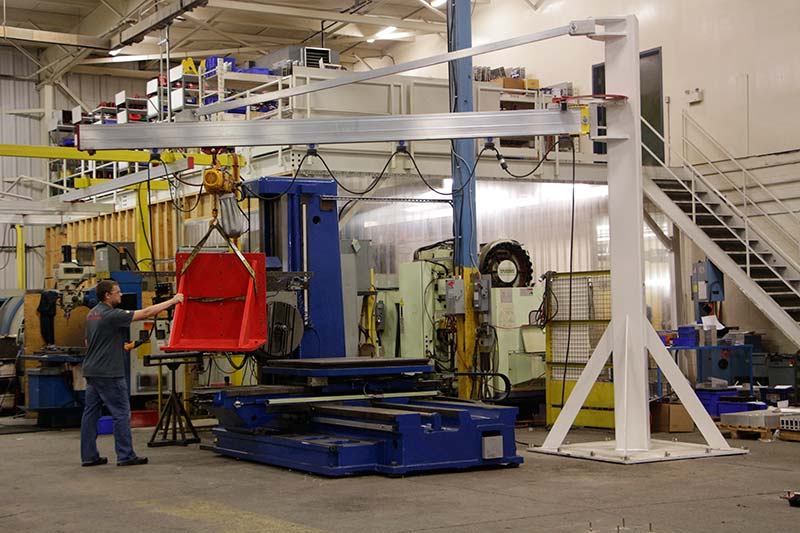

Aluminum floor mounted electric jib crane is mainly composed of a column, a swing arm, an electric hoist and other parts. The column is the main part of the jib crane and is responsible for supporting the entire equipment. It is usually made of high-strength aluminum alloy materials and has the advantages of light weight, high strength, and corrosion resistance. The swing arm is the main execution part of the hoisting operation. It can realize rotation and lifting movements, thereby achieving all-round hoisting of the workpiece. The electric hoist is the power source for hoisting operations. The motor drives the chain or wire rope to quickly and accurately hoist the workpiece.

Rotation method and angle

The swing arm part of the Aluminum floor mounted electric jib crane can achieve 360-degree all-round rotation to meet the lifting needs at different angles. At the same time, the rotation angle of the cantilever arm can also be accurately adjusted through electric control, thereby achieving precise lifting of the workpiece. In addition, the jib crane can be customized according to actual needs, such as adding a manual rotation function to adapt to more complex hoisting environments.

Design features

  ● The main part of the jib crane is made of high-strength aluminum alloy material, which has the advantages of light weight, high strength, corrosion resistance, etc., which can effectively reduce the weight of the equipment and improve hoisting efficiency.

  ● It adopts a floor-standing design and does not need to be installed on the ceiling. It can be placed directly on the ground for easy installation and movement. It is suitable for temporary or mobile workplaces.

  ● The swing arm part can achieve 360-degree all-round rotation to meet the lifting needs at different angles.

  ● It adopts an electric drive system, which has the characteristics of fast lifting speed, easy operation and low noise, which can improve work efficiency and operating comfort.

  ● The design is compact and lightweight, easy to carry and install, and suitable for lifting operations in various places.
